• Pickup bed includes bed assist step (Deleted when (ZW9) pickup bed delete is ordered.)
• Push Button Start
• Auto-locking rear differential
• Rear wheel drive
• Air filter, heavy-duty
• Air filtration monitoring
• Recovery hooks, front, frame-mounted, Black
• Frame, fully-boxed, hydroformed front section and a fully-boxed stamped rear section
• Suspension Package
• Steering, Recirculating Ball with smart flow power steering system
• Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
• Brake lining wear indicator

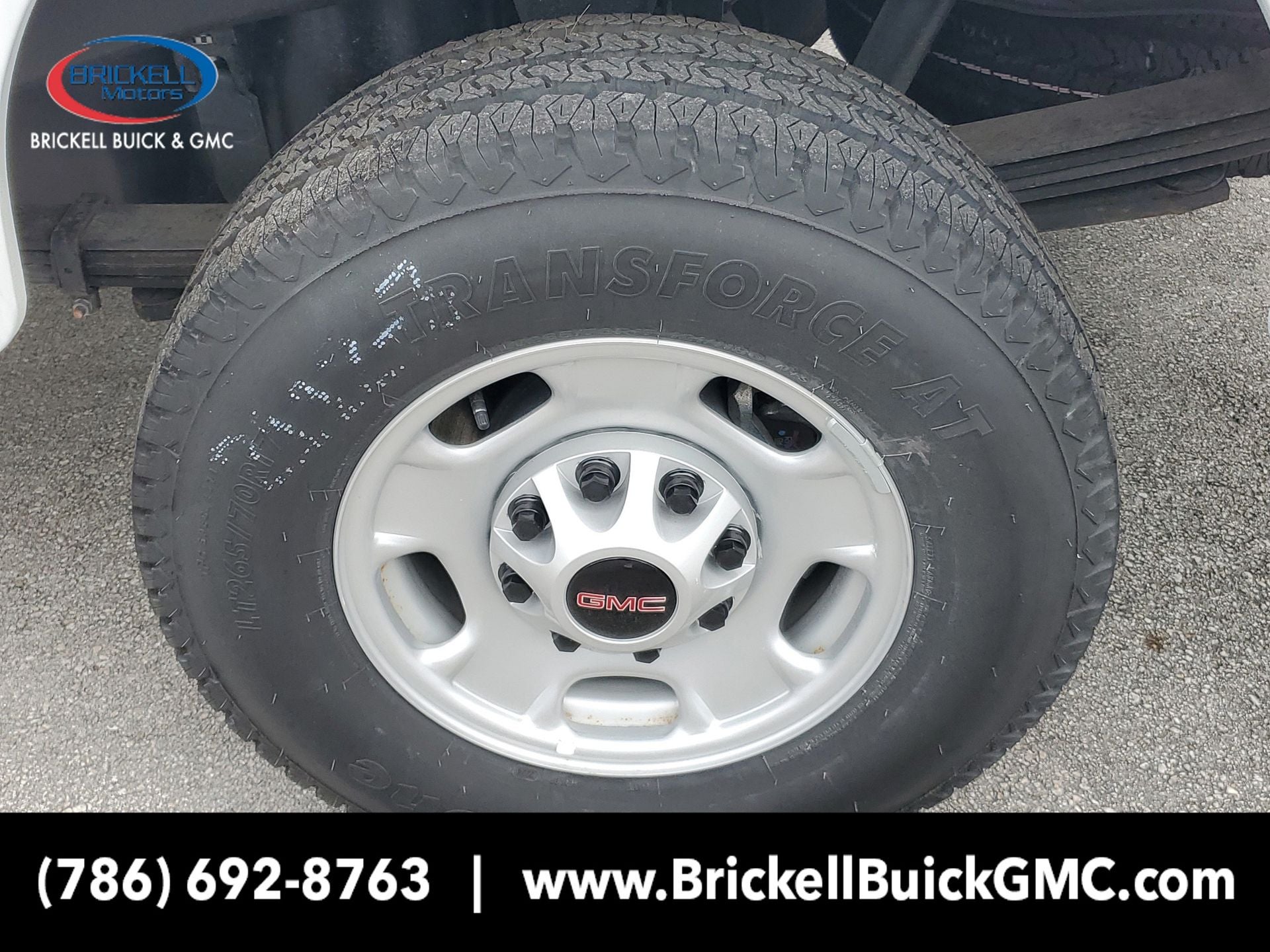

• Wheels, 17" (43.2 cm) painted steel, Silver
• Tires, LT245/75R17E all-season, blackwall
• Tire, spare LT245/75R17E all-season, blackwall (Included and only available with (QHQ) LT245/75R17E all-season, blackwall tires with (E63) pickup bed models. Available to order when (ZW9) pickup bed delete and (QHQ) LT245/75R17E all-season, blackwall tires are ordered.)
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door (Deleted with (ZW9) pickup bed delete.)
• Bumper, front chrome lower
• Bumper, rear chrome with bumper CornerSteps
• Bed Step, Black integrated on forward portion of bed on driver and passenger side (Not available on (ZW9) pickup bed delete.)
• CornerStep, rear bumper
• Cargo tie downs (12), fixed, rated at 500 lbs per corner
• Moldings, beltline, Black
• Grille (Chrome with flat black grille insert bars.)

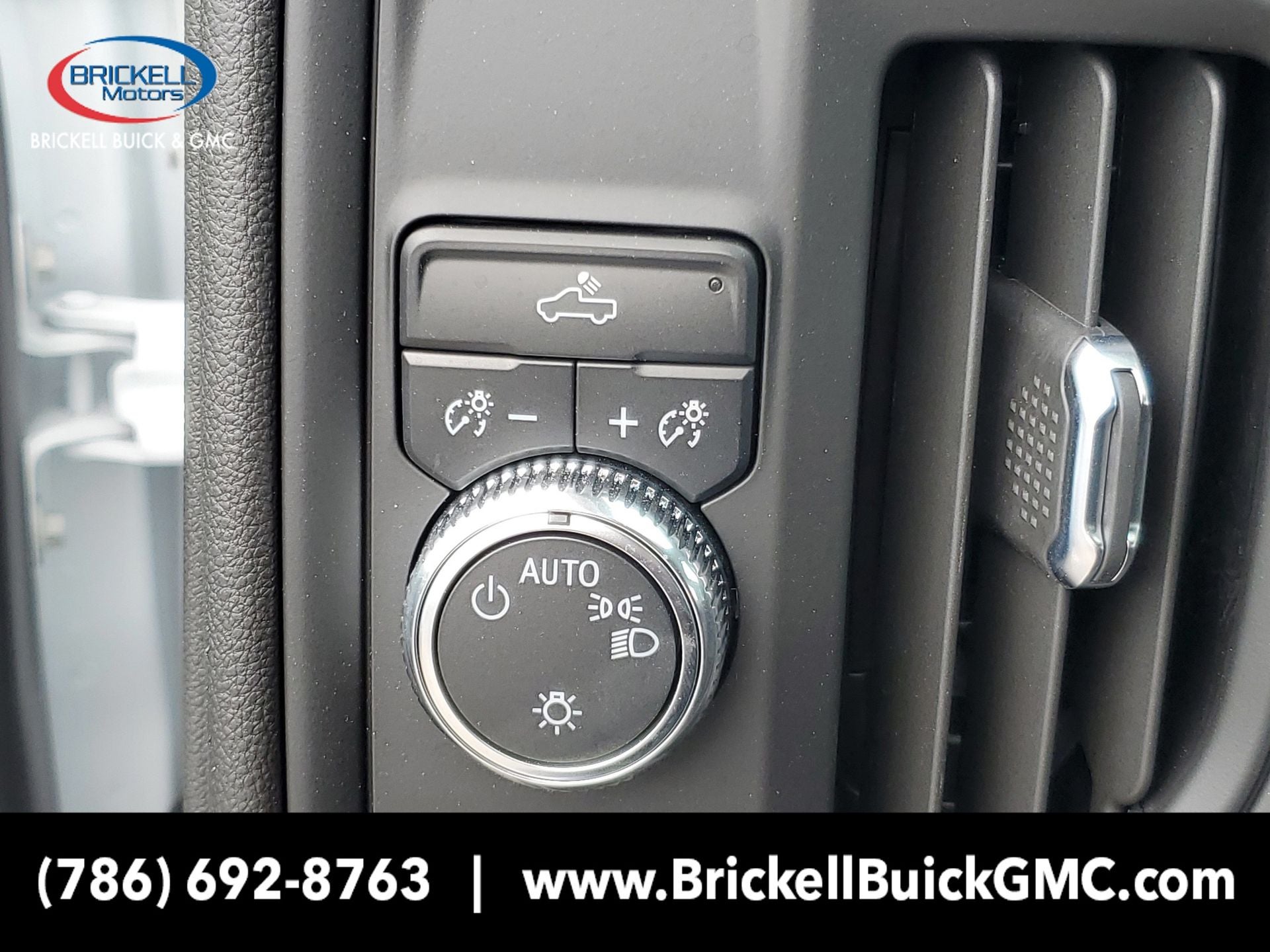

• Headlamps, Animated LED projectors LED turn signals and Daytime Running Lamps
• IntelliBeam, automatic high beam on/off (Included and only available with (PDI) Sierra HD Pro Safety.)
• Lamps, cargo area cab mounted integrated with center high mount stop lamp, with switch in bank on left side of steering wheel
• Taillamps, LED Signature Tail, Incandescent Brake, Turn & Reverse Lamps
• Mirrors, outside power-adjustable vertical trailering with heated upper glass, lower convex mirrors, integrated turn signals, manual folding/extending (extends 3.31" [84.25mm]), Black (Standard on Regular Cab models.)
• Glass, solar absorbing, tinted

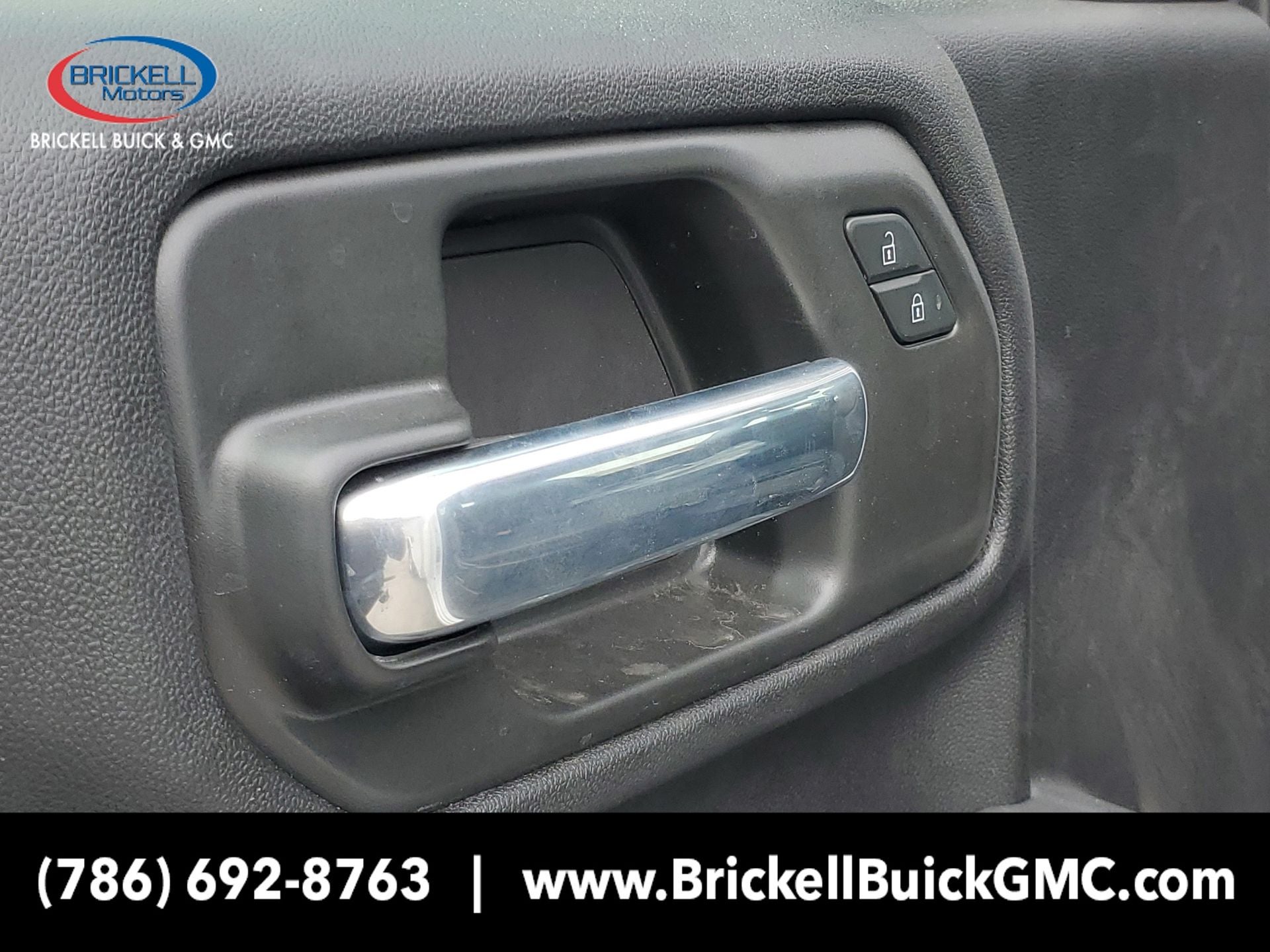

• Door handles, Black grained
• Tailgate, standard (Deleted with (ZW9) pickup bed delete.)
• Tailgate, locking, utilizes same key as ignition and door (Included and only available with (QK1) standard tailgate. Deleted with (ZW9) pickup bed delete.)
• Tailgate, gate function manual, no lift assist (Deleted with (ZW9) pickup bed delete.)
• Tailgate and bed rail protection caps, top (Deleted with (ZW9) pickup bed delete.)

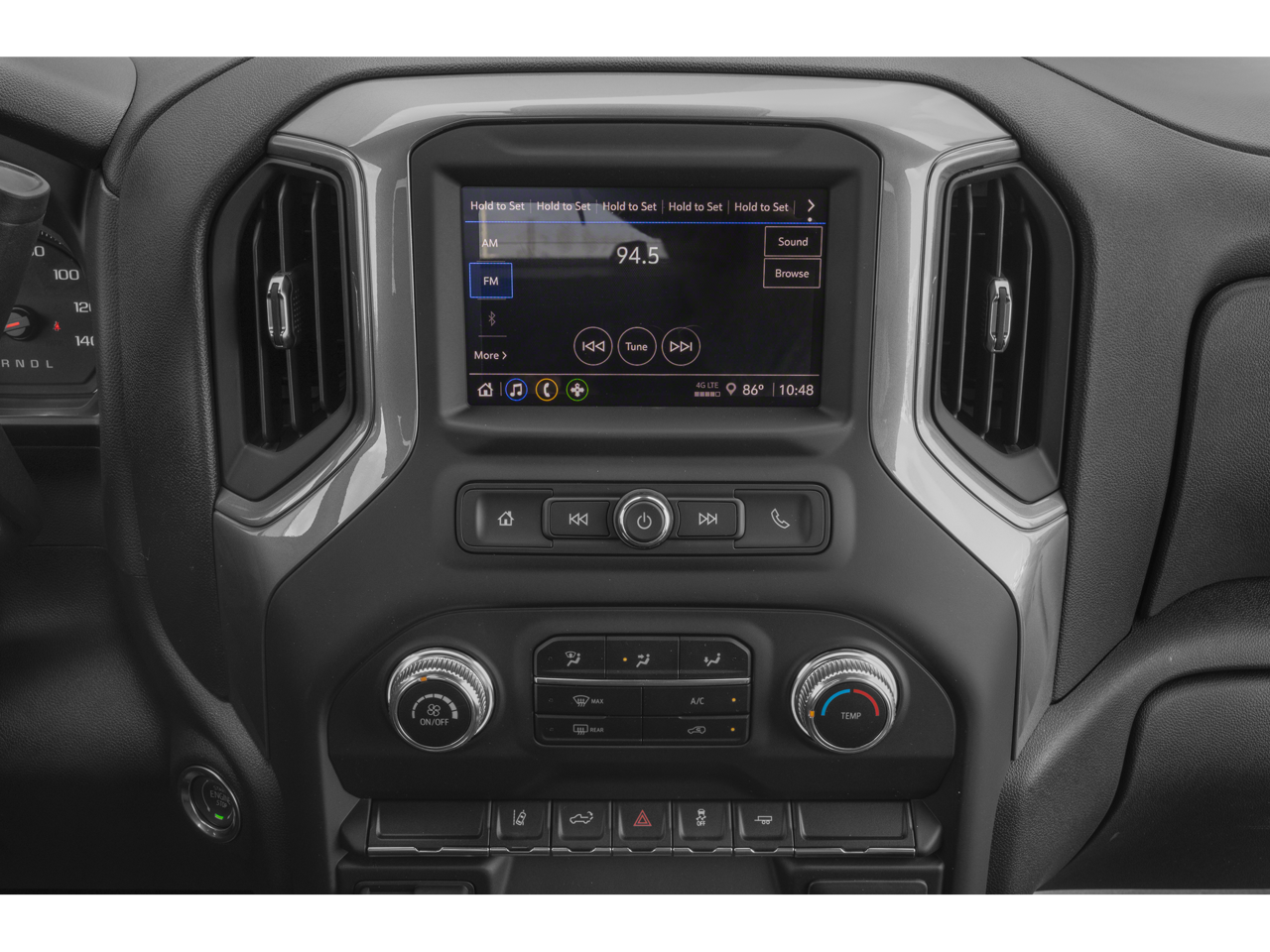

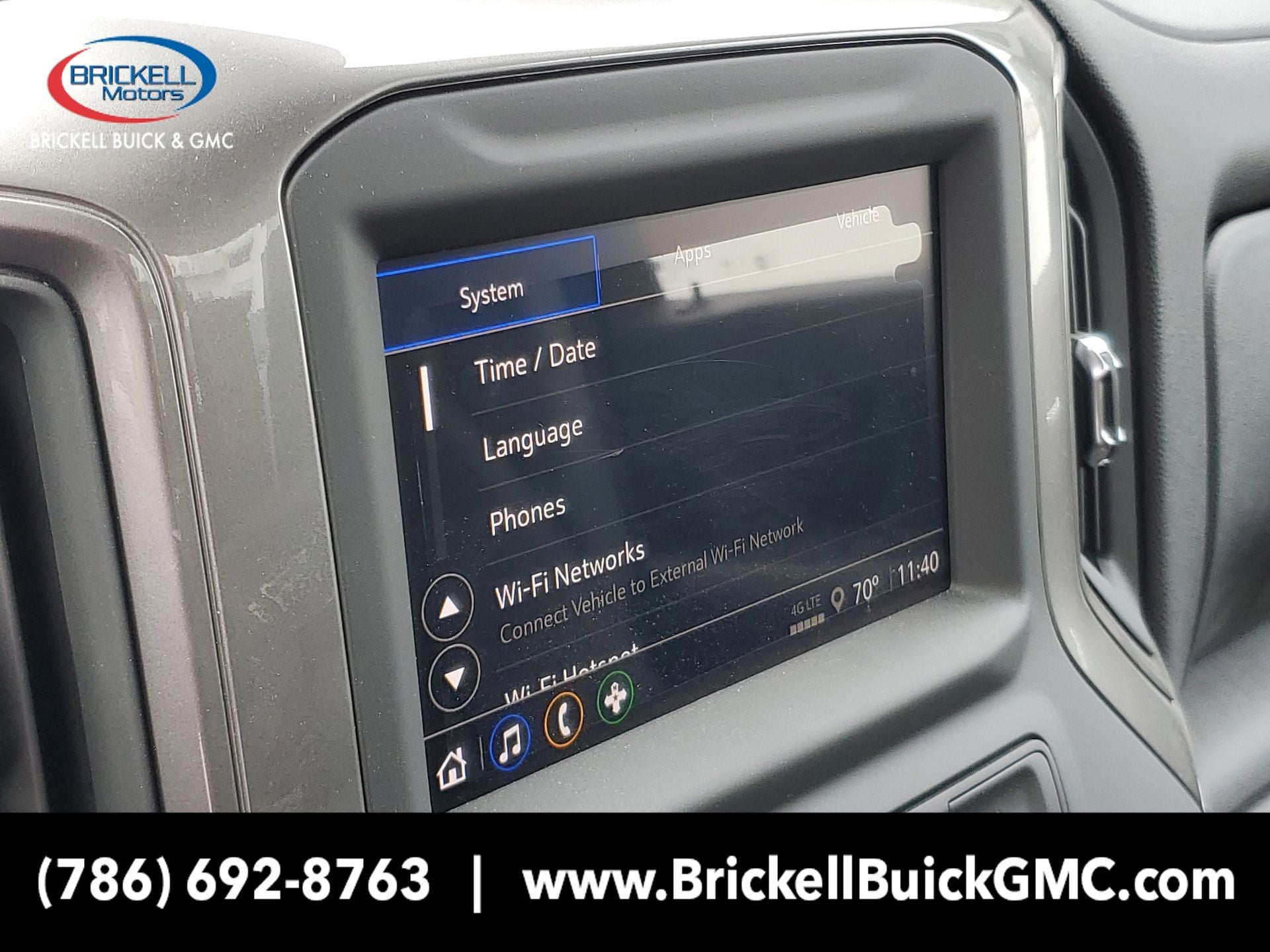

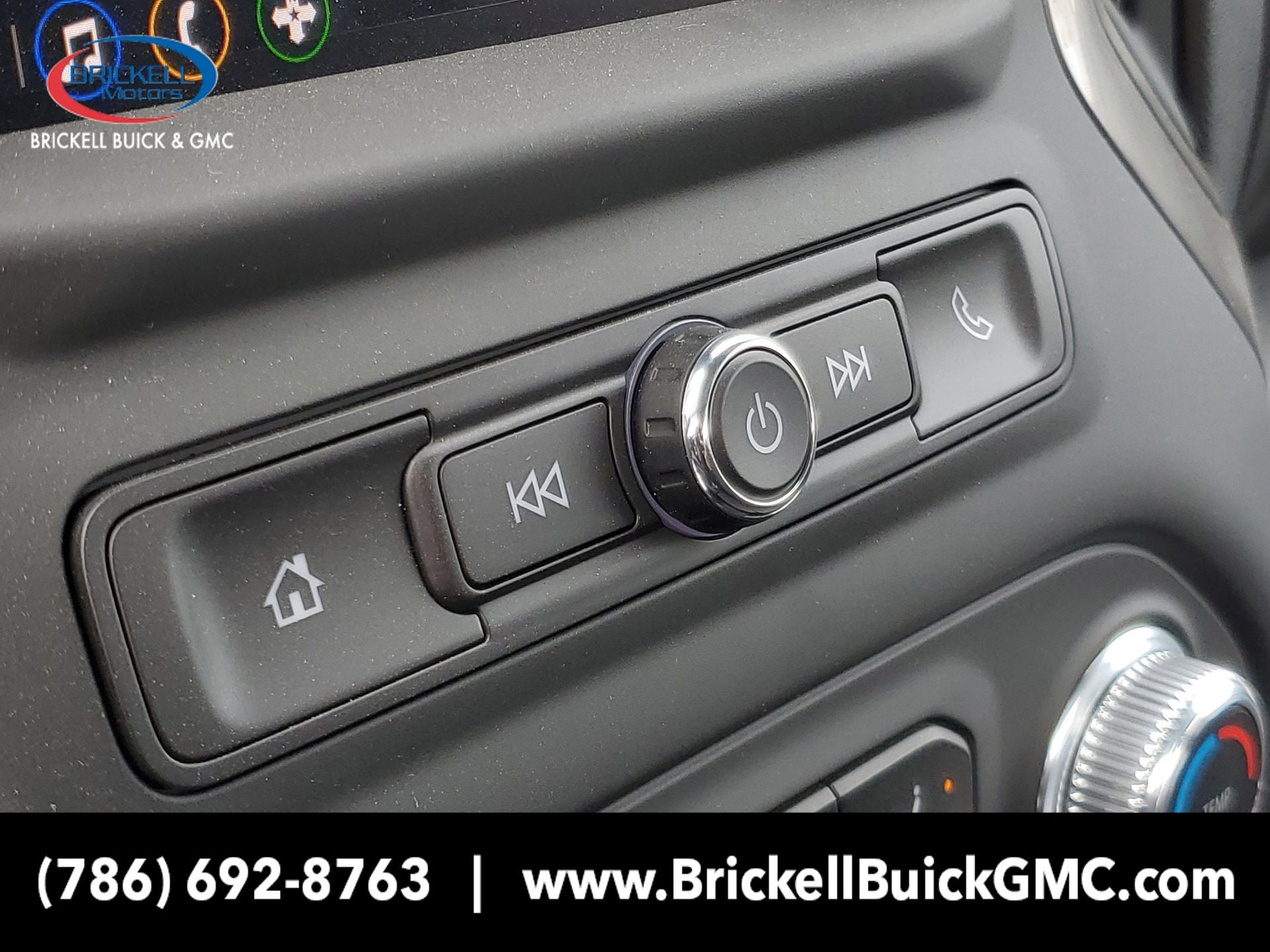

• Audio system, GMC Infotainment System with 7" diagonal color touch-screen AM/FM stereo with seek-and-scan and digital clock, includes Bluetooth® streaming audio for music and select phones; featuring wired Android Auto and Apple CarPlay capability for compatible phones
• Audio system feature, 2-speakers (Requires Regular Cab model.)
• Bluetooth® for phone connectivity to vehicle infotainment system
• Wireless phone projection for Apple CarPlay and Android Auto
• Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)

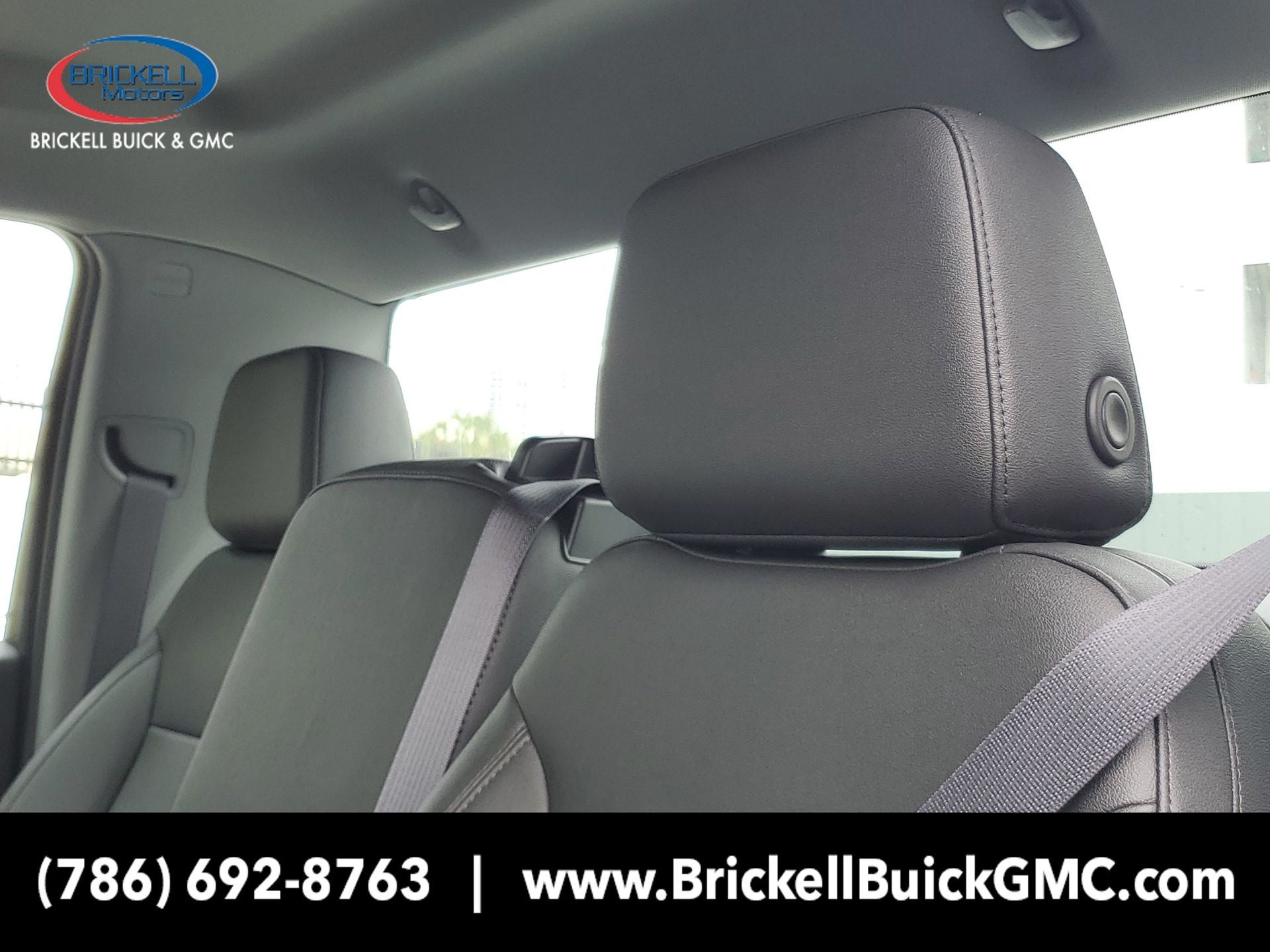

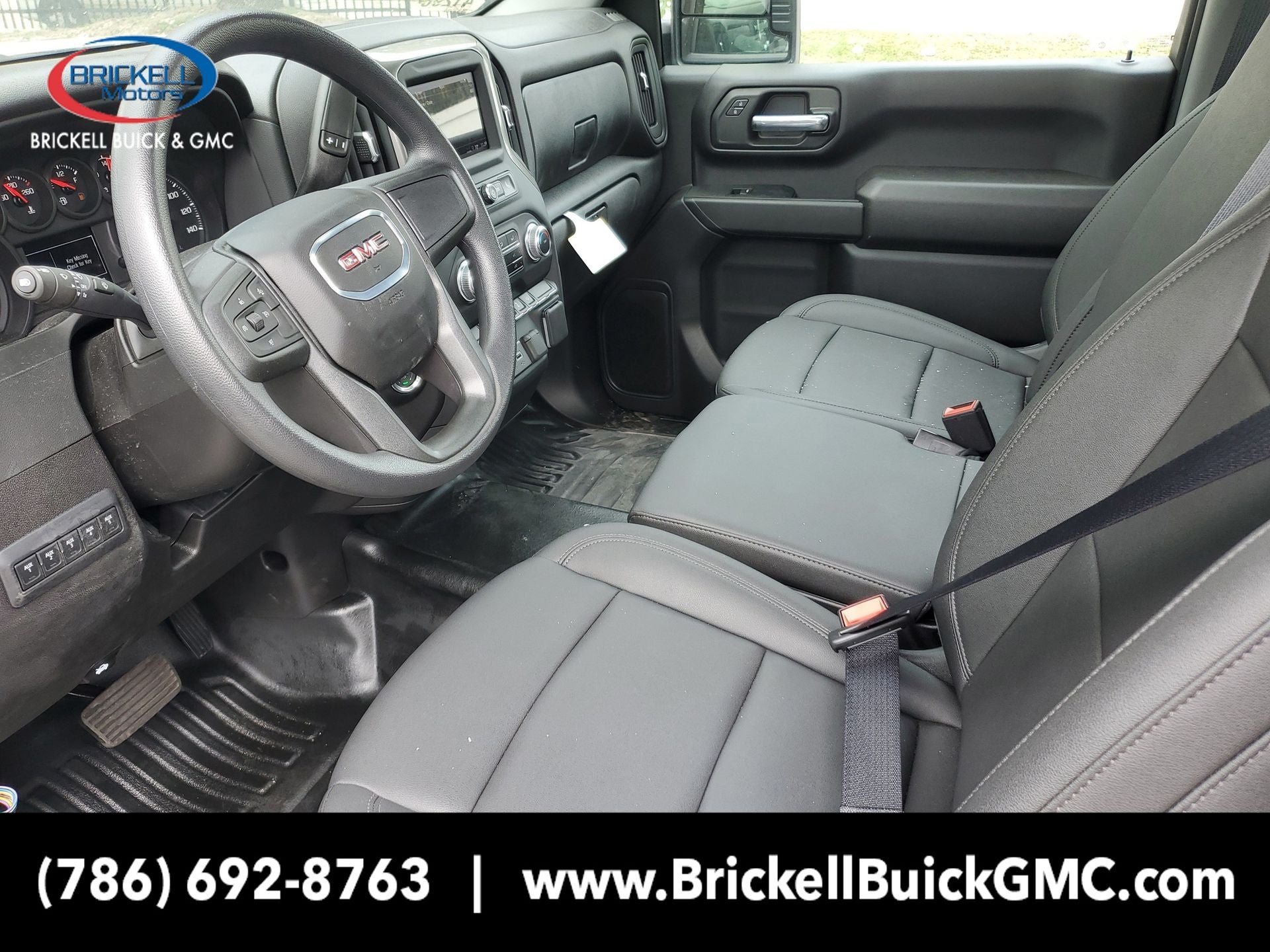

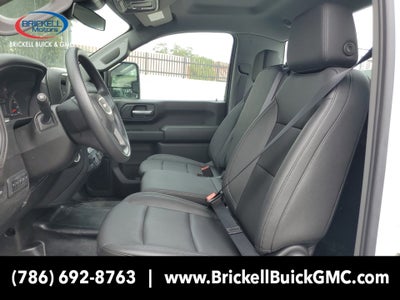

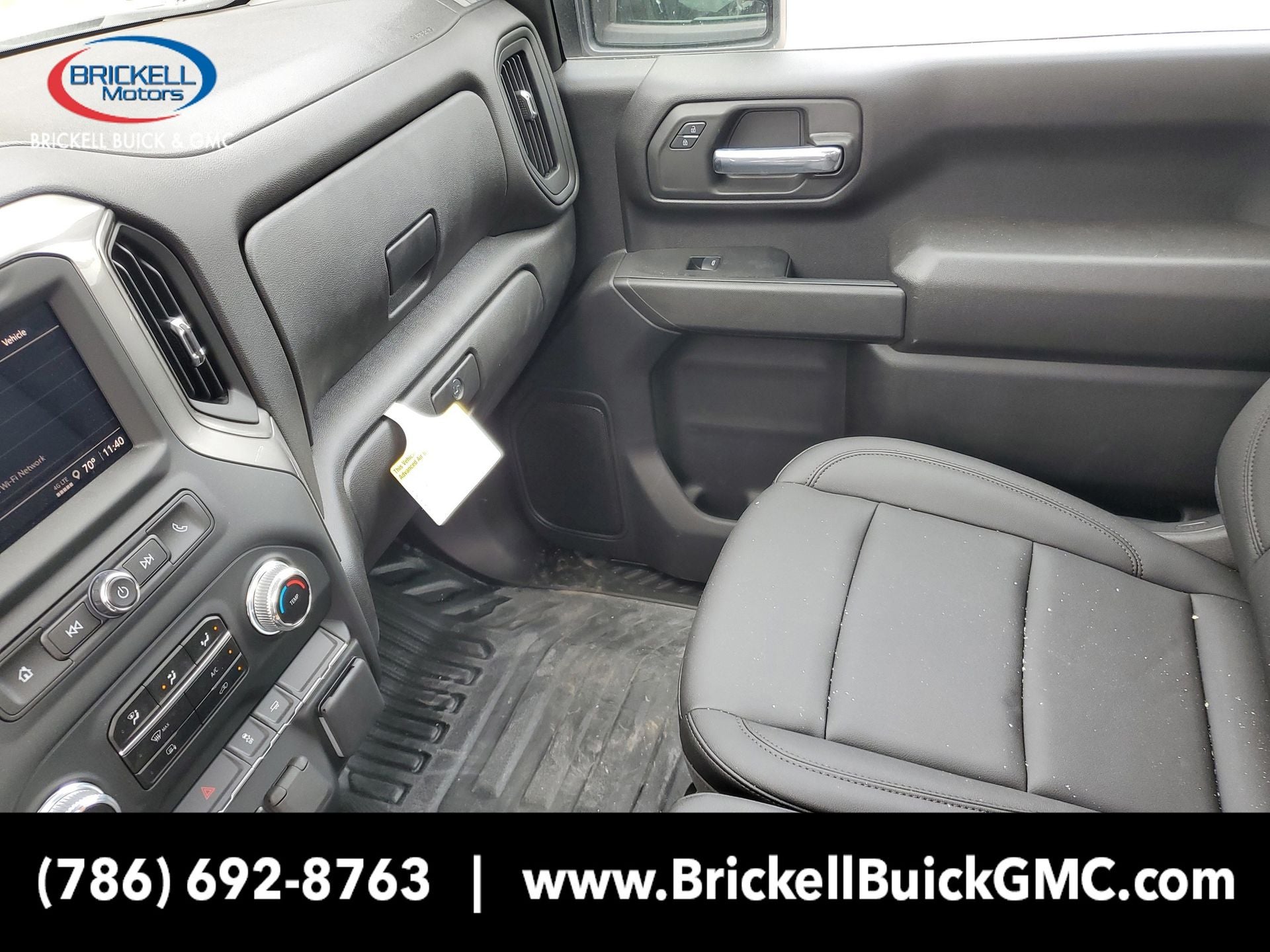

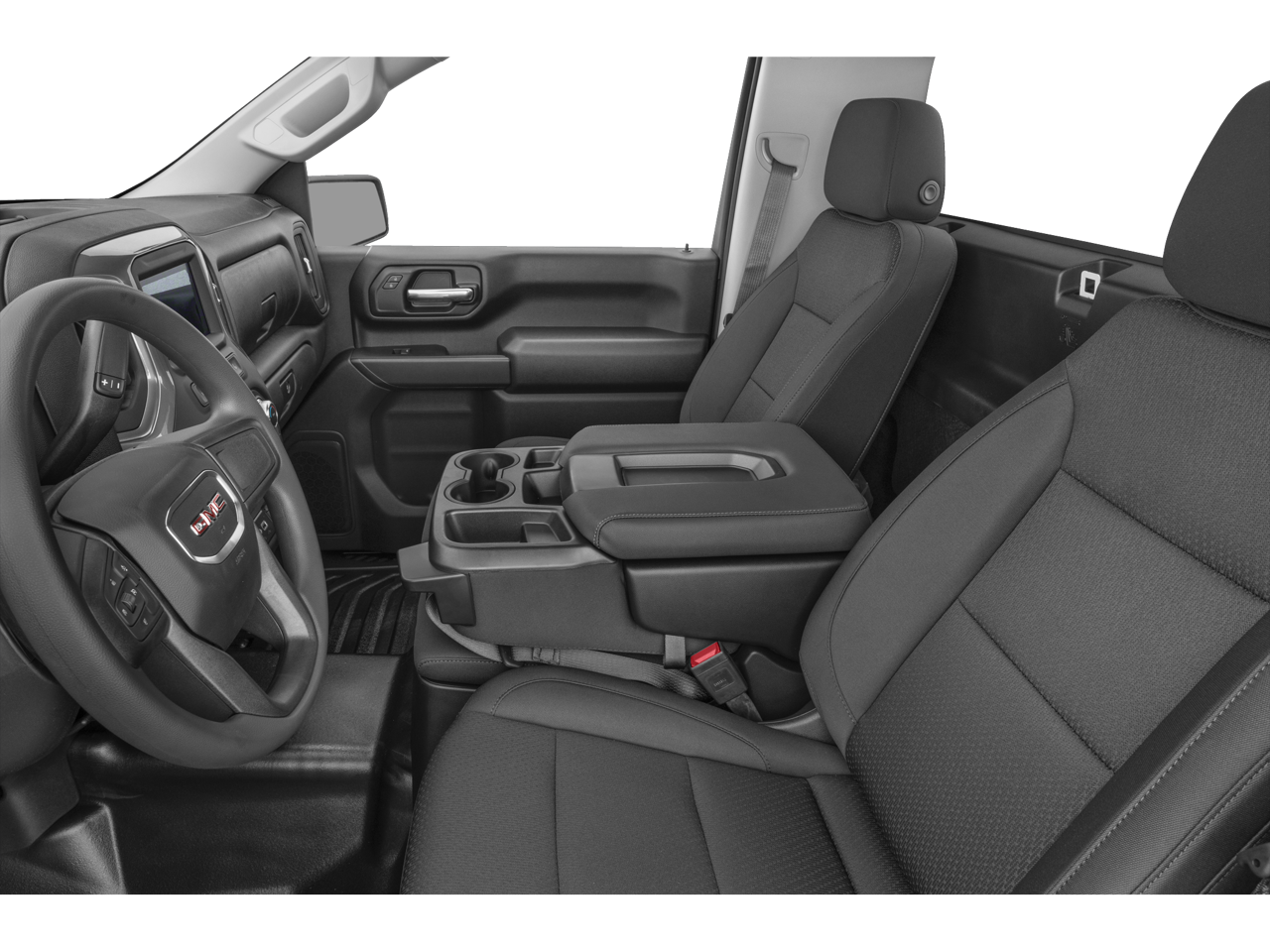

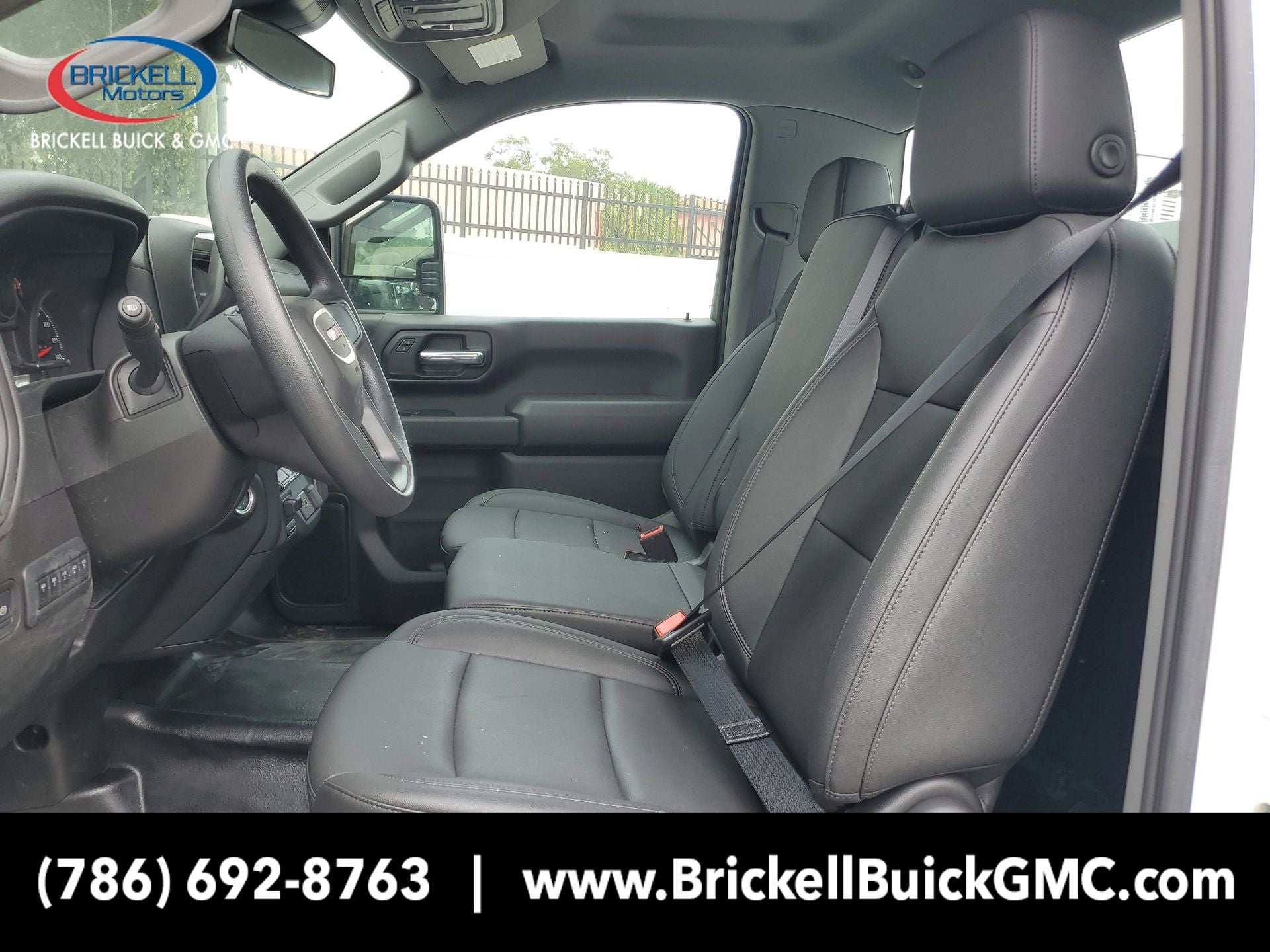

• Seats, front 40/20/40 split-bench with covered armrest storage and under-seat storage (lockable)
• Seat trim, Vinyl
• Seat adjuster, driver 4-way manual
• Seat adjuster, passenger 4-way manual
• Floor covering, rubberized-vinyl (Not available with LPO floor liners.)

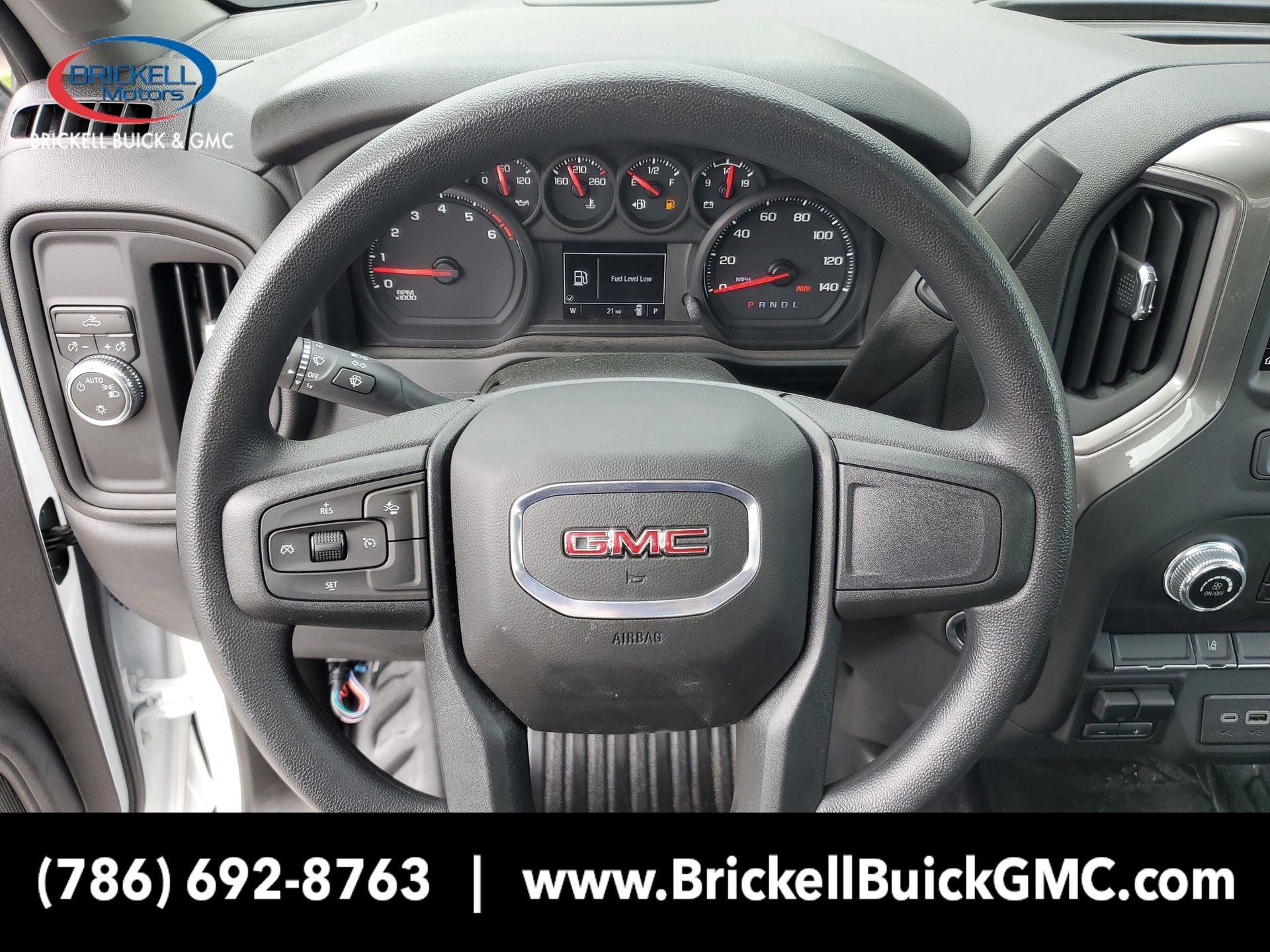

• Steering wheel, urethane

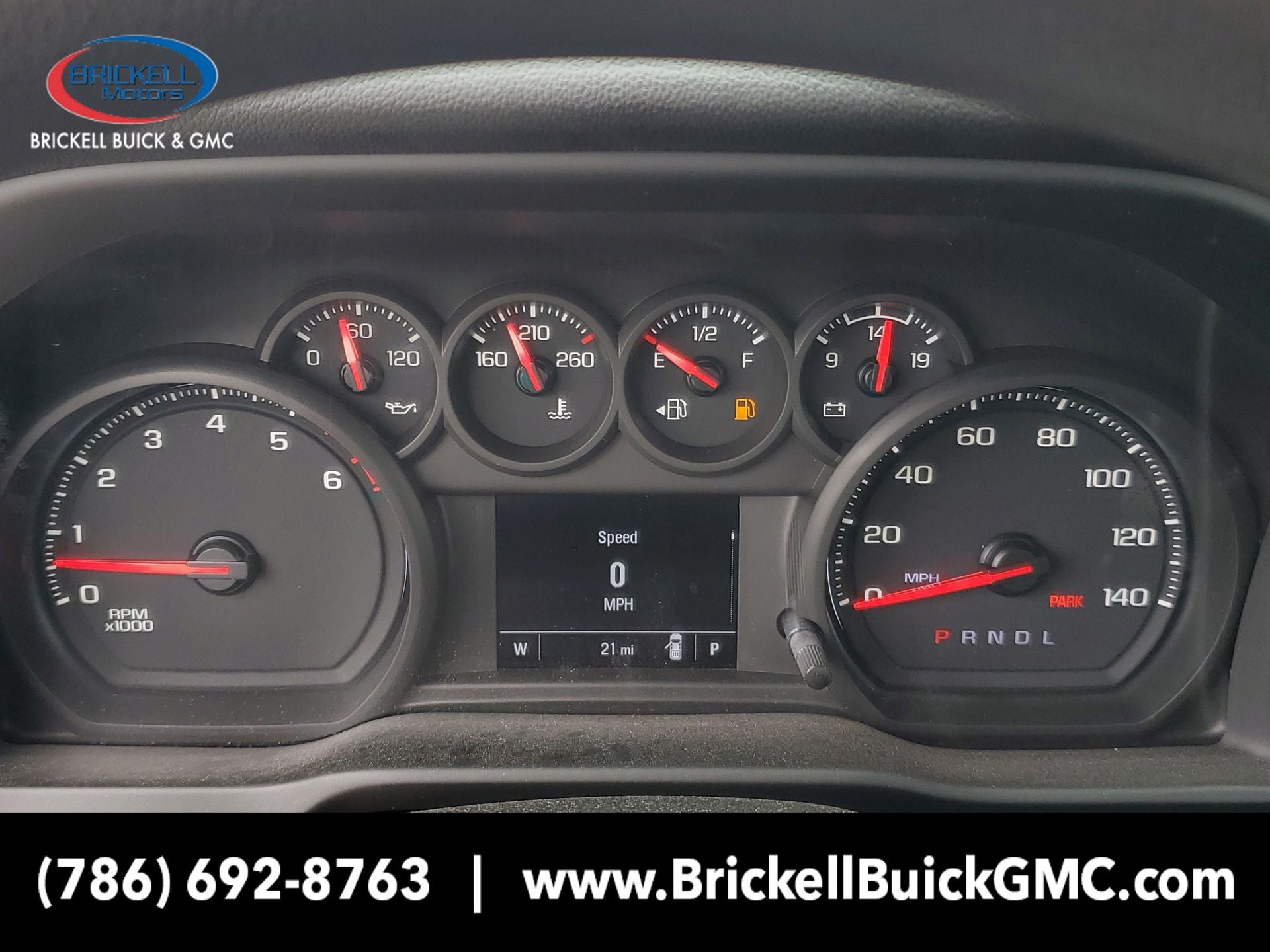

• Driver Information Center, 3.5" diagonal monochromatic display
• Exterior Temperature Display, located in radio display
• Compass, located in instrument cluster
• Windows, power front, drivers express up/down
• Window, power front, passenger express down
• Windows, power rear, express down
• Door locks, power
• Remote Keyless Entry

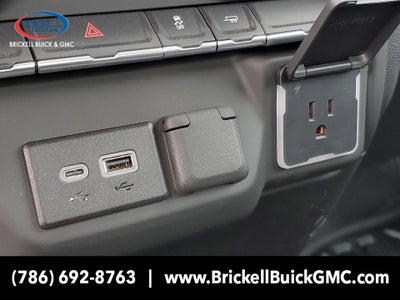

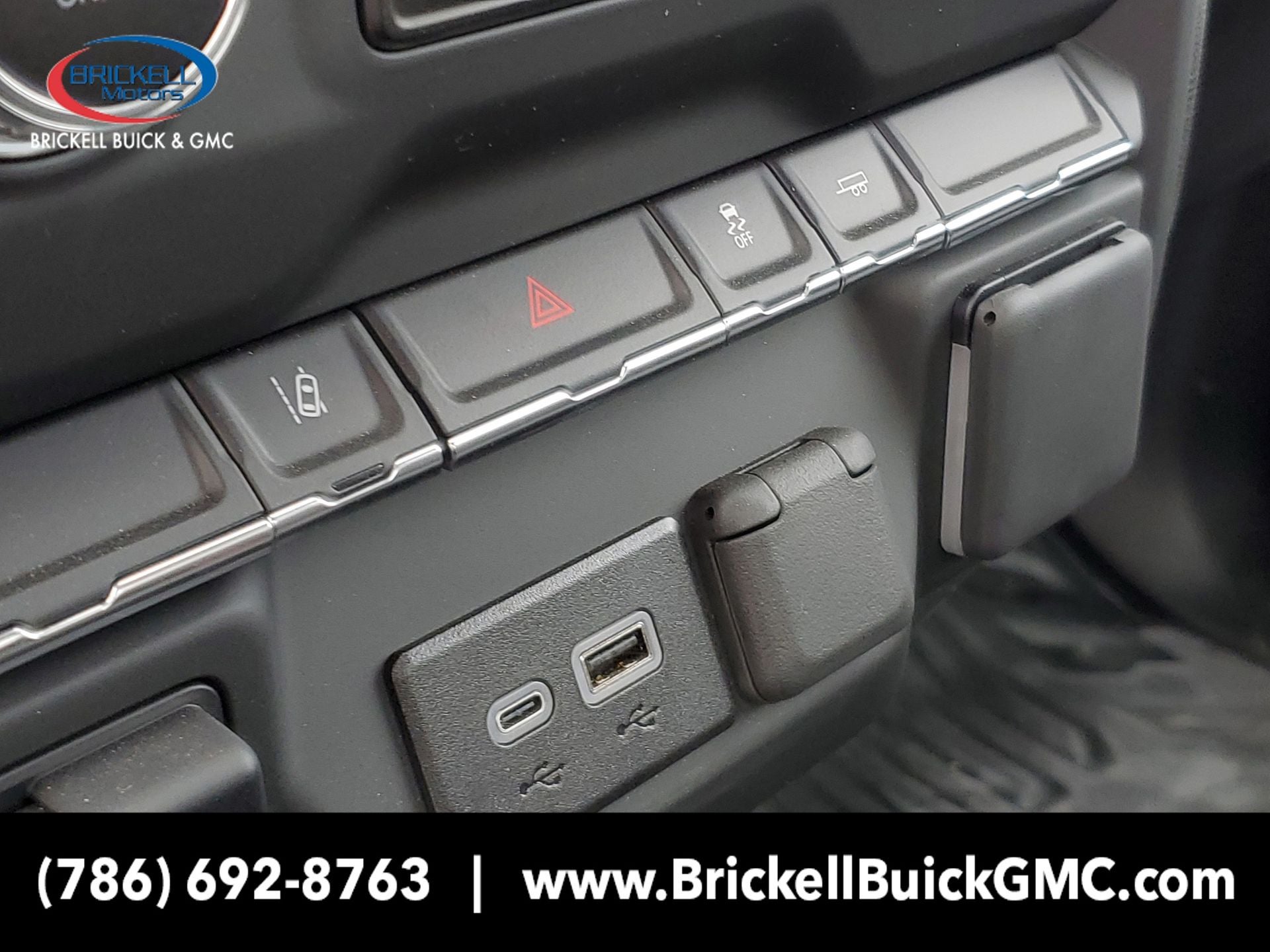

• USB Ports, 2, Charge/Data ports located on instrument panel
• Power outlet, front auxiliary, 12-volt

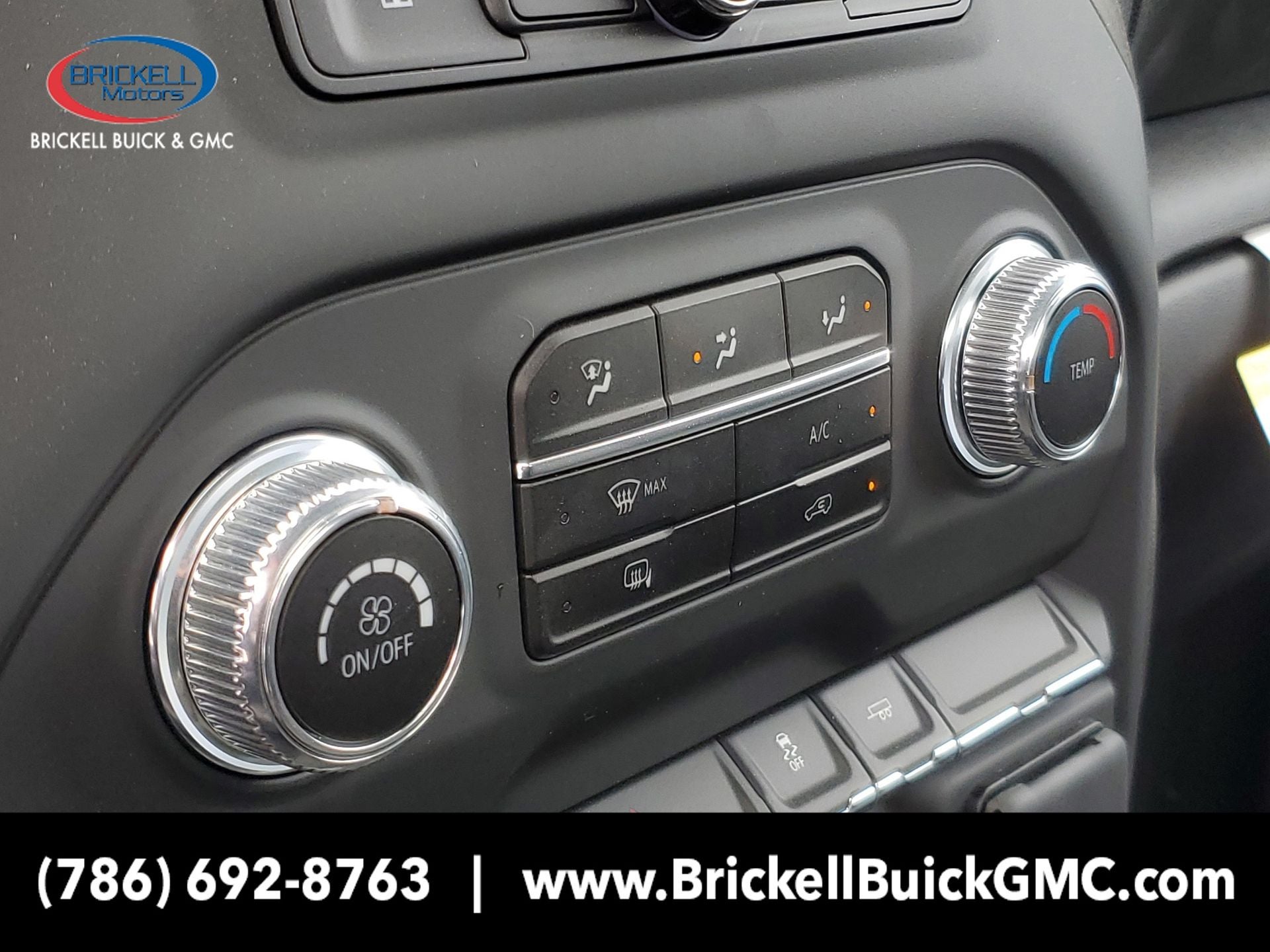

• Air conditioning, single-zone
• Mirror, inside rearview, manual tilt
• Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted
• GMC Connected Access capable (Subject to terms. See onstar.com or dealer for details.)

• Front Pedestrian Braking (Included and only available with (PDI) Sierra HD Pro Safety.)
• Automatic Emergency Braking (Included and only available with (PDI) Sierra HD Pro Safety.)
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Daytime Running Lamps, LED signature lighting
• LED Signature DRL's
• Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar and GMC Connected Services capable (Terms and limitations apply. See onstar.com or dealer for details.)
• HD Rear Vision Camera (Not available with (ZW9) pickup bed delete. Removed with (UV2) HD Surround Vision or (ZW9) pickup bed delete. Not available with (Z6A) Gooseneck / 5th Wheel Prep Package.)
• Hitch Guidance dynamic single line to aid in truck trailer alignment for hitching (Deleted with (ZW9) pickup bed delete.)
• Forward Collision Alert (Included and only available with (PDI) Sierra HD Pro Safety.)
• Following Distance Indicator (Included and only available with (PDI) Sierra HD Pro Safety.)
• Lane Departure Warning (Included and only available with (PDI) Sierra HD Pro Safety.)
• Buckle to Drive prevents vehicle from being shifted out of Park until driver seat belt is fastened; times out after 20 seconds and encourages seat belt use (Included and only available with (PDI) Sierra HD Pro Safety.)
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System, auto learn includes Tire Fill Alert (does not apply to spare tire)
• Trailering Information Label provides max trailer ratings for tongue weight, conventional, gooseneck and 5th wheel trailering (Not available on (ZW9) pickup bed delete.)
• 3 Years of OnStar Remote Access. The OnStar Remote Access Plan gives you simplified remote control of your properly equipped vehicle and unlocks a variety of great features in your myGMC mobile app. See dealer for details. (OnStar Remote Access Plan does not include emergency or security services. Fleet customers will get Fleet Remote Access through OnStar Vehicle Insights. See onstar.com for details and limitations. Available on select Apple and Android devices. Service availability, features and functionality vary by vehicle, device, and the plan you are enrolled in. Terms apply. Device data connection required.)

PICKUP BED, DELETE

• includes capped fuel fill
• (SFW) Back-up alarm calibration
• (9J4) rear bumper delete
• (9L3) spare tire delete and spare tire carrier delete.

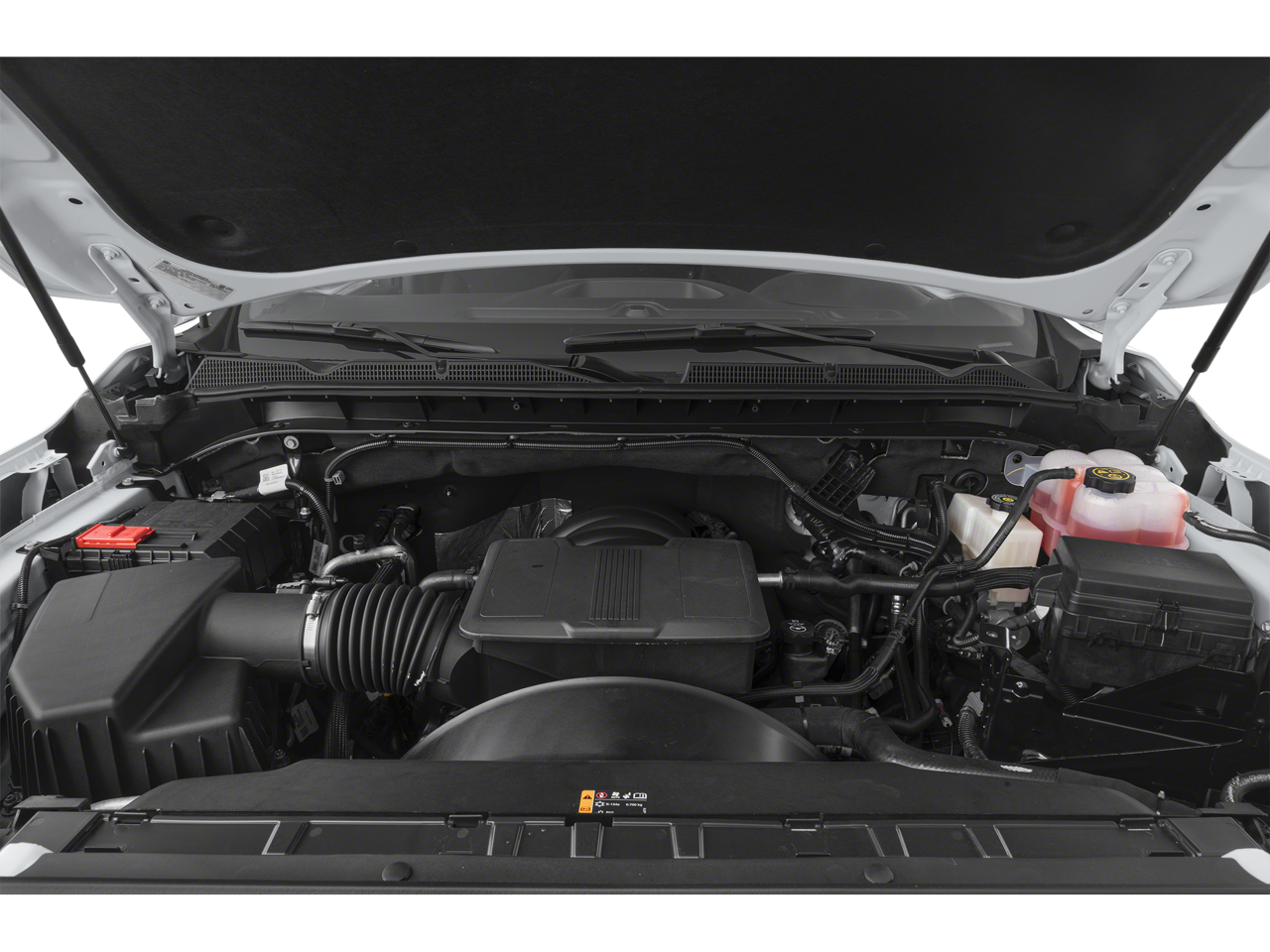

ENGINE, 6.6L V8

• with Direct Injection and Variable Valve Timing
• gasoline
• (401 hp [299 kW] @ 5200 rpm
• 464 lb-ft of torque [629 N-m] @ 4000 rpm) (STD)

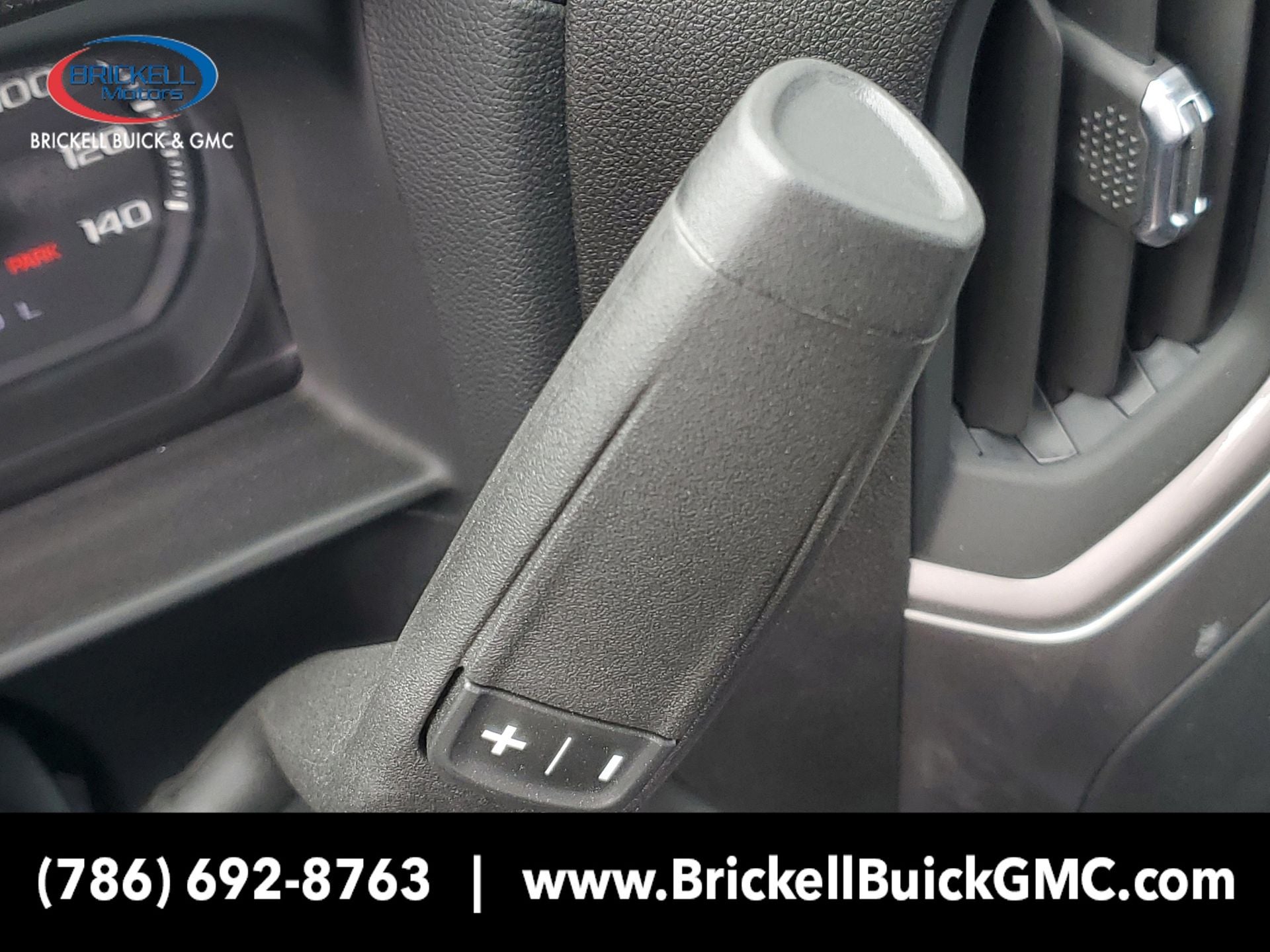

TRANSMISSION, ALLISON 10-SPEED AUTOMATIC

• (STD)

LOWERED GVWR, 10,000 LBS. (4536 KG), LOWERS GVWR AND SIGNIFICANTLY DECREASES TOWING AND/OR PAYLOAD RATINGS

• (STD)

PRO PREFERRED EQUIPMENT GROUP

• includes standard equipment

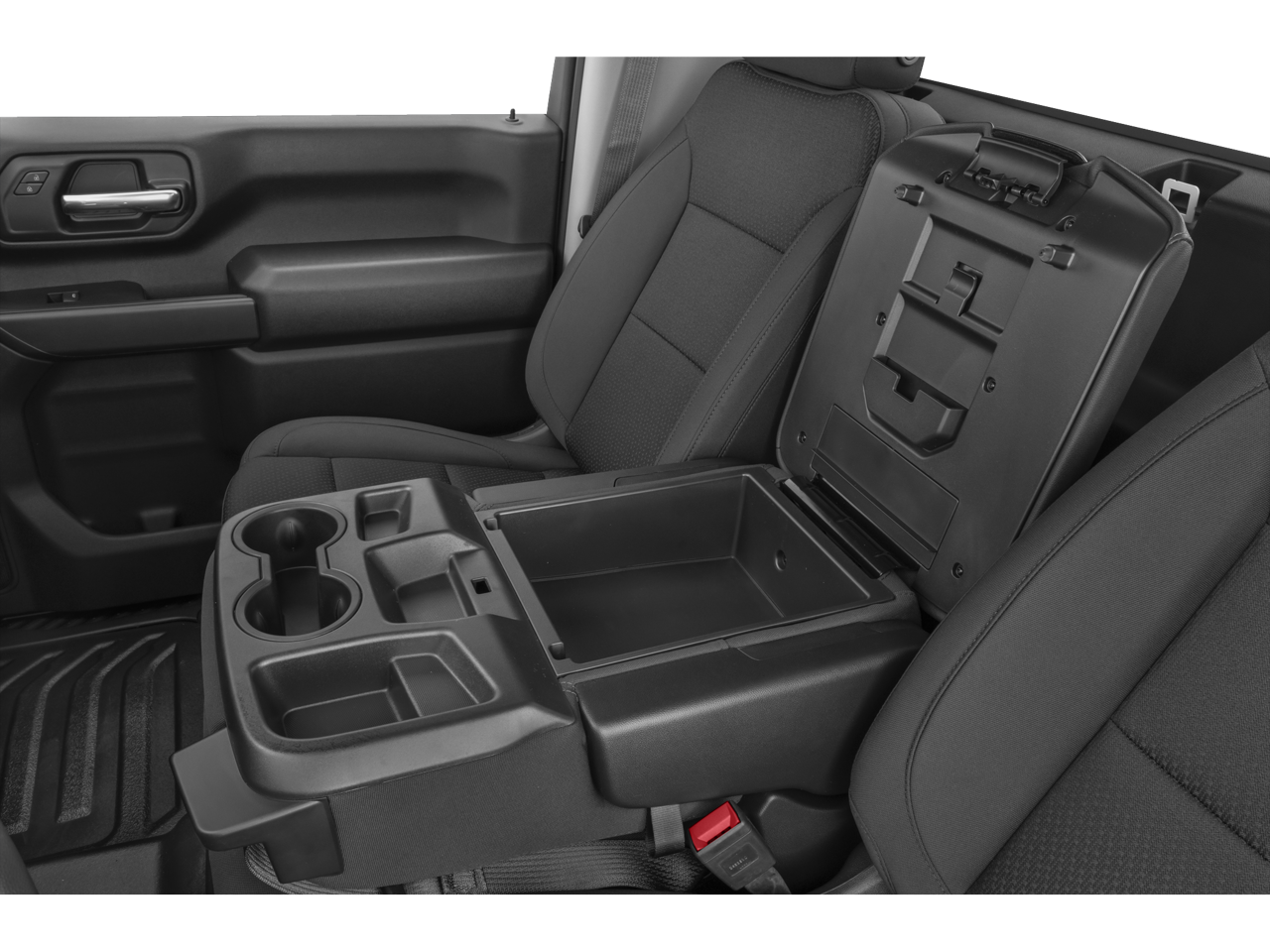

SEATS, FRONT 40/20/40 SPLIT-BENCH

• with covered armrest storage and under-seat storage (lockable) (STD)

AUDIO SYSTEM, GMC INFOTAINMENT SYSTEM WITH 7" DIAGONAL COLOR TOUCH-SCREEN

• AM/FM stereo with seek-and-scan and digital clock
• includes Bluetooth® streaming audio for music and select phones; featuring wired Android Auto and Apple CarPlay capability for compatible phones (STD)

LICENSE PLATE KIT, FRONT, INCANDESCENT LIGHTING

• (will be forced on orders with ship-to states that require front license plate)

STEERING COLUMN, TILT-WHEEL, MANUAL

• with wheel locking security feature (Beginning February 27
• 2023 through June 4
• 2023
• certain vehicles will be forced to include (N37) manual tilt/telescoping steering column that will remove the (N33) Tilt-Wheel manual steering column. Does not include later dealer retrofit. See dealer for details or the window label for the features on a specific vehicle.)

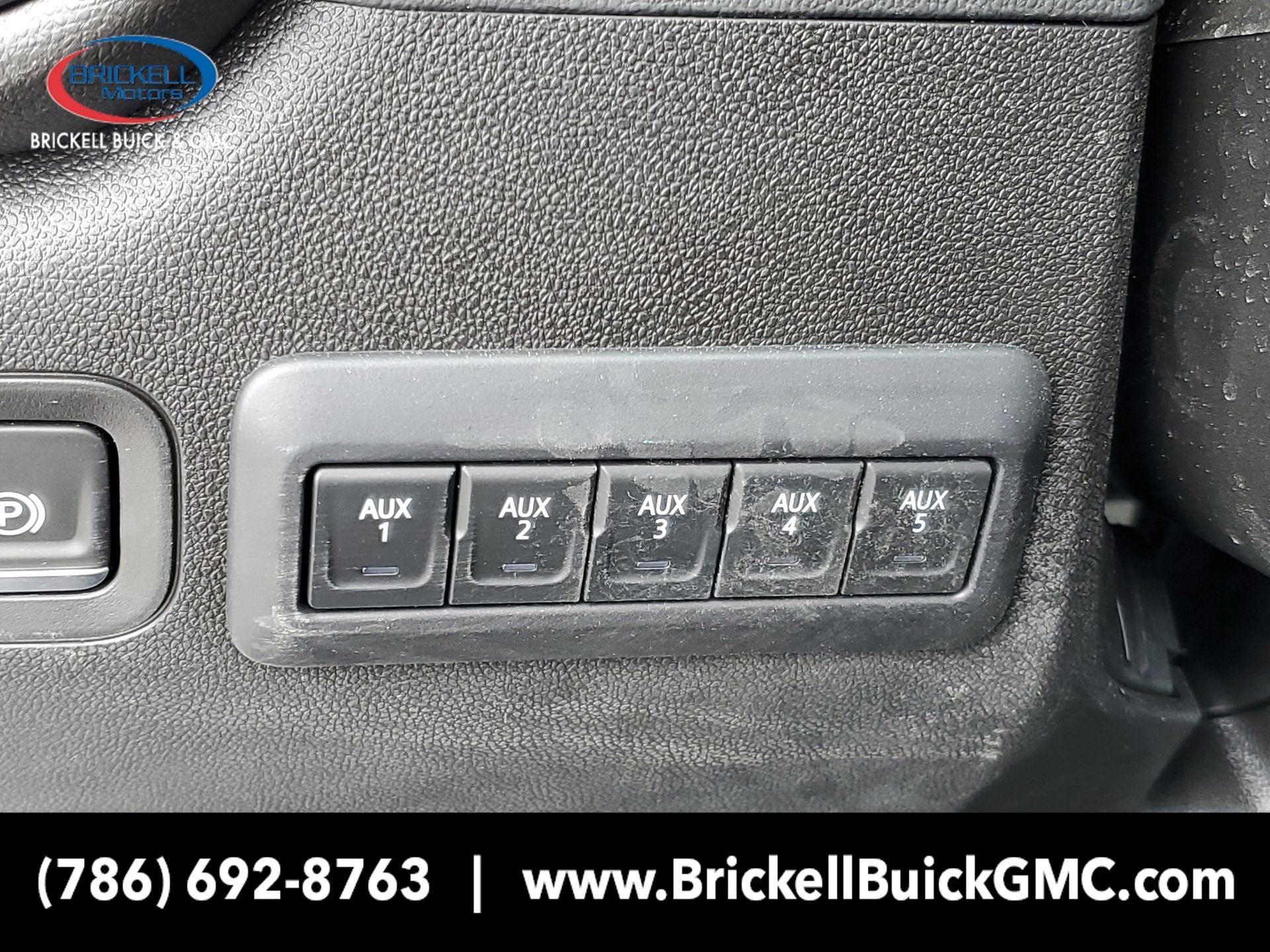

UPFITTER SWITCH KIT, (5)

• Provides 3-30 amp and 2-20 amp configurable circuits to facilitate installation of aftermarket electrical accessories. Kit with all required parts will be shipped loose with the truck for installation by the dealer or upfitter at customer expense. Installation instructions and technical assistance available at www.gmupfitter.com.

BACK-UP ALARM CALIBRATION

• This calibration will allow installation of an aftermarket backup alarm by disabling rear perimeter lighting

REAR CAMERA KIT

• Kit includes camera
• fixed position bracket & 19 ft cable with attachment clips. Rear camera radio calibration provided from the factory. See Upfitter Integration Bulletin for installation instructions at www.gmupfitter.com

• Preferred Equipment Group 1SA
• 3.73 Rear Axle Ratio
• 17" Steel Wheels
• LT265/70R17E AT BW Spare Tire (DISC)
• Front 40/20/40 Split-Bench Seats
• Vinyl Seat Trim
• Radio: AM/FM w/GMC Infotainment System

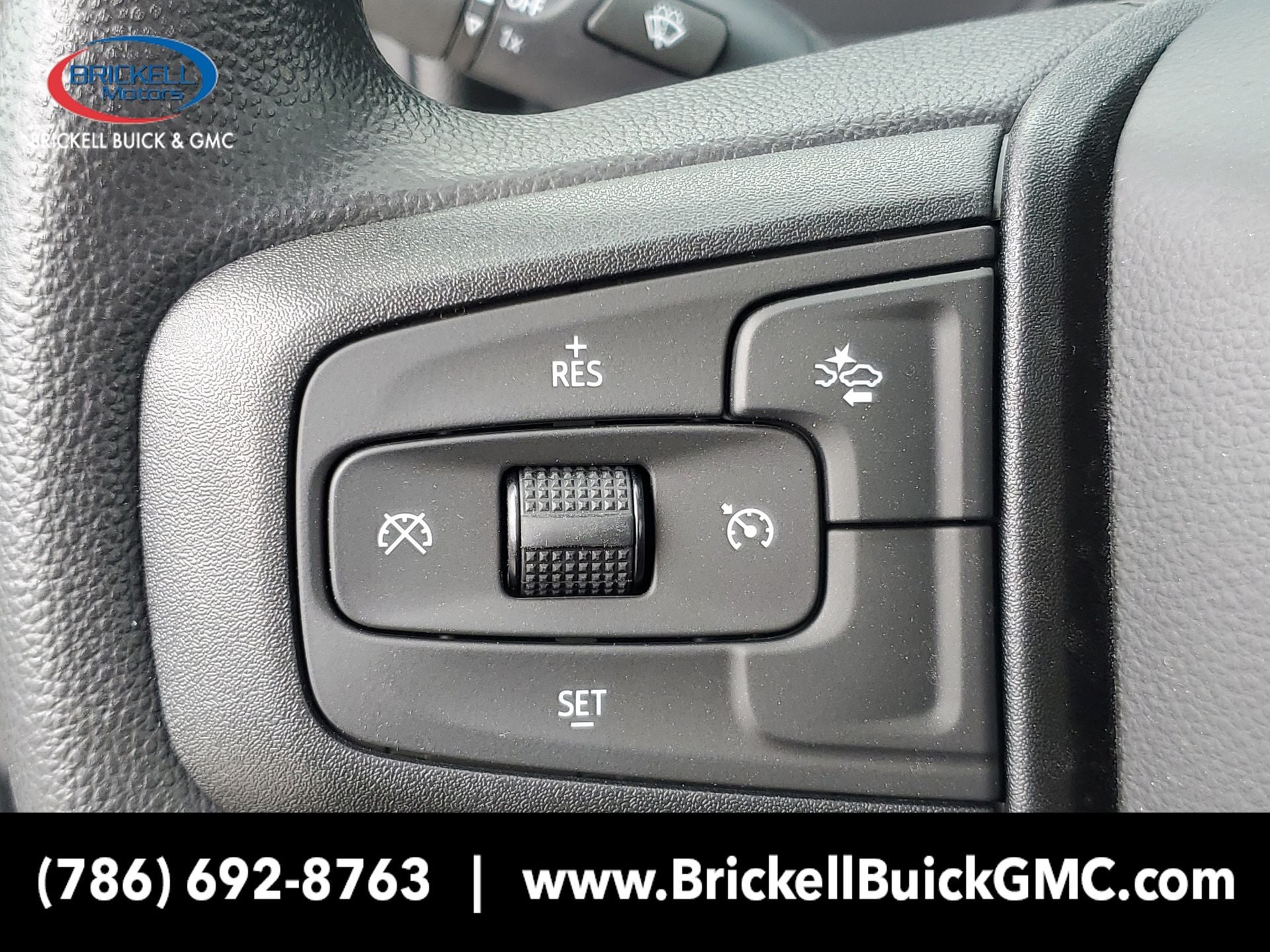

• Steering Wheel-Mounted Cruise Control
• 120-Volt Instrument Panel Power Outlet
• Upfitter Switch Kit (5)
• Front License Plate Kit
• Pickup Box

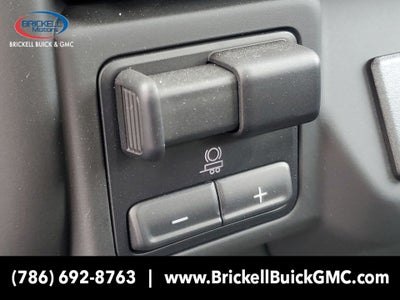

• Integrated Trailer Brake Controller
• Suspension Package
• 4-Way Manual Driver Seat Adjuster
• 4-Way Manual Passenger Seat Adjuster
• Solar Absorbing Tinted Glass
• Remote Keyless Entry
• Push Button Start
• Chrome Grille w/Flat Black Grille Insert Bars
• Heavy-Duty 80 Amp Battery
• Sierra HD Pro Safety
• Wireless Phone Projection
• Buckle to Drive
• IntelliBeam Automatic High Beam On/Off
• 2-Speaker Audio System Feature
• 2 Charge/Data USB Ports
• OnStar & GMC Connected Services Capable
• Following Distance Indicator
• Forward Collision Alert
• Lane Departure Warning System
• Automatic Emergency Braking
• Front Pedestrian Braking
• 4-Wheel Disc Brakes
• Apple CarPlay/Android Auto
• Premium audio system: GMC Infotainment System
• Auto High-beam Headlights
• Front Center Armrest w/Storage
• Compass
• 2 Speakers
• Variably intermittent wipers
• Trip computer
• Traction control
• Tilt steering wheel
• Remote keyless entry
• Rear step bumper
• Power windows
• Power steering
• Passenger vanity mirror
• Passenger door bin
• Panic alarm
• Overhead console
• Overhead airbag
• Outside temperature display
• Occupant sensing airbag
• Low tire pressure warning
• Illuminated entry
• Fully automatic headlights
• Front wheel independent suspension
• Front reading lights
• Front anti-roll bar
• Dual front side impact airbags
• Dual front impact airbags
• Driver door bin
• Delay-off headlights
• Bumpers: chrome
• Brake assist
• AM/FM radio
• ABS brakes
• Voltmeter
• Tachometer
• Electronic Stability Control
• Air Conditioning

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 170
• Maximum Alternator Watts: N/A
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): - TBD -
• Gross Axle Wt Rating - Rear (lbs): - TBD -
• Curb Weight - Front (lbs): 3481
• Curb Weight - Rear (lbs): 2612
• Gross Vehicle Weight Rating Cap (lbs): 10000
• Gross Combined Wt Rating (lbs): 24500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 14500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1450
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 18700
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4675
• Maximum Trailering Capacity (lbs): 14500
• Suspension
• Suspension Type - Front: Short/Long Arm
• Suspension Type - Rear: Multi-Leaf Springs
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 2.01
• Shock Absorber Diameter - Rear (mm): 2.01
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14 x 1.6
• Rear Brake Rotor Diam x Thickness (in): 14.1 x 1.3
• Tires
• Front Tire Order Code: QXT
• Front Tire Order Code: QHQ
• Rear Tire Order Code: QXT
• Rear Tire Order Code: QHQ
• Spare Tire Order Code: ZXT
• Spare Tire Order Code: ZHQ
• Front Tire Size: LT265/70R17E
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT265/70R17E
• Rear Tire Size: LT245/75R17E
• Spare Tire Size: LT265/70R17E
• Spare Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 17 x - TBD -
• Rear Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 46.9
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 142
• Length, Overall (in): 236.3
• Width, Max w/o mirrors (in): 81.75
• Height, Overall (in): 79.94
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): 55.24
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.2
• Ground Clearance, Rear (in): 10.2
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.27
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 50.55
• Cargo Box (Area) Height (in): 21
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 83.5
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 43.11
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.06
• Front Hip Room (in): 60.9
• Summary

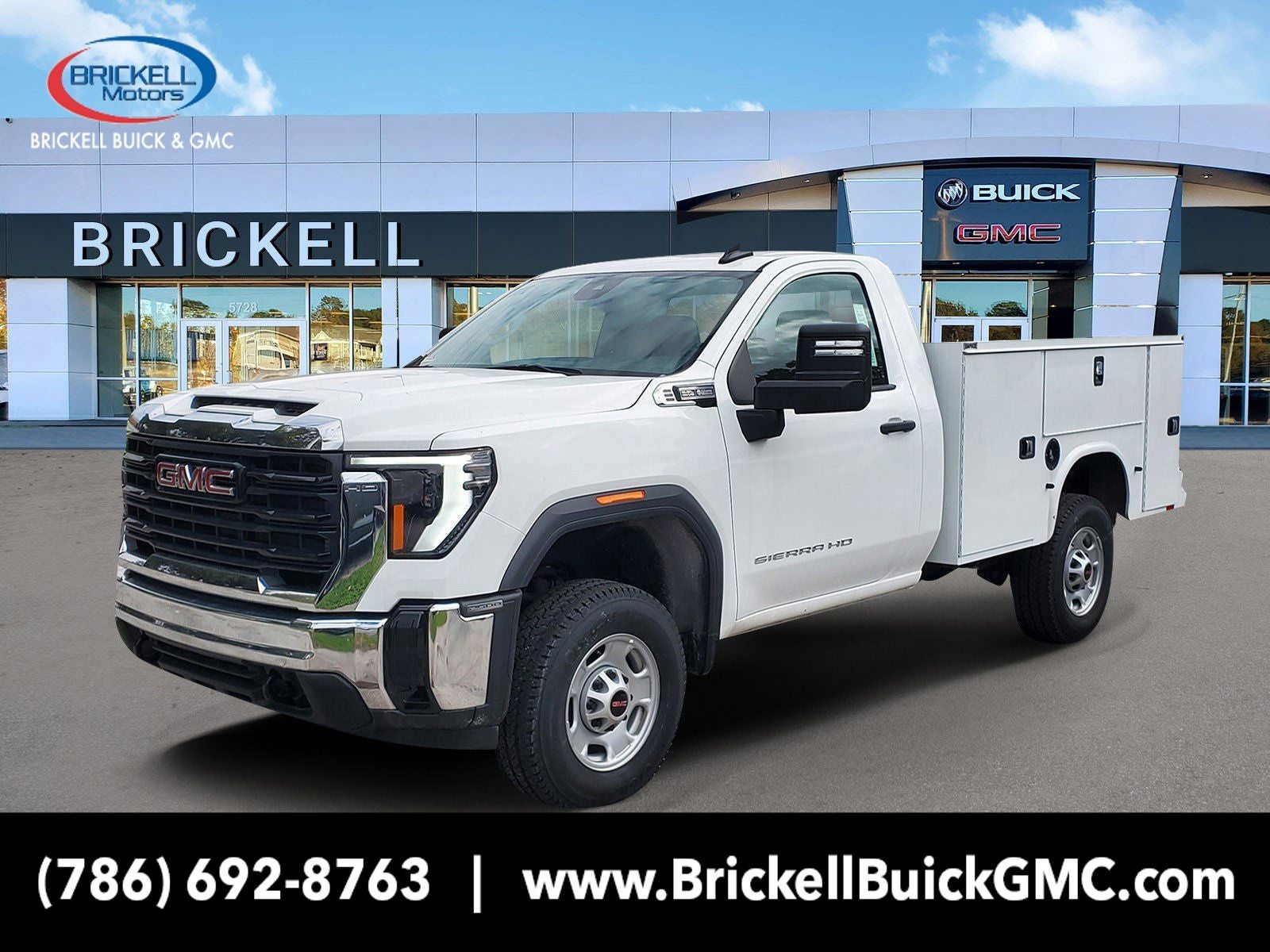

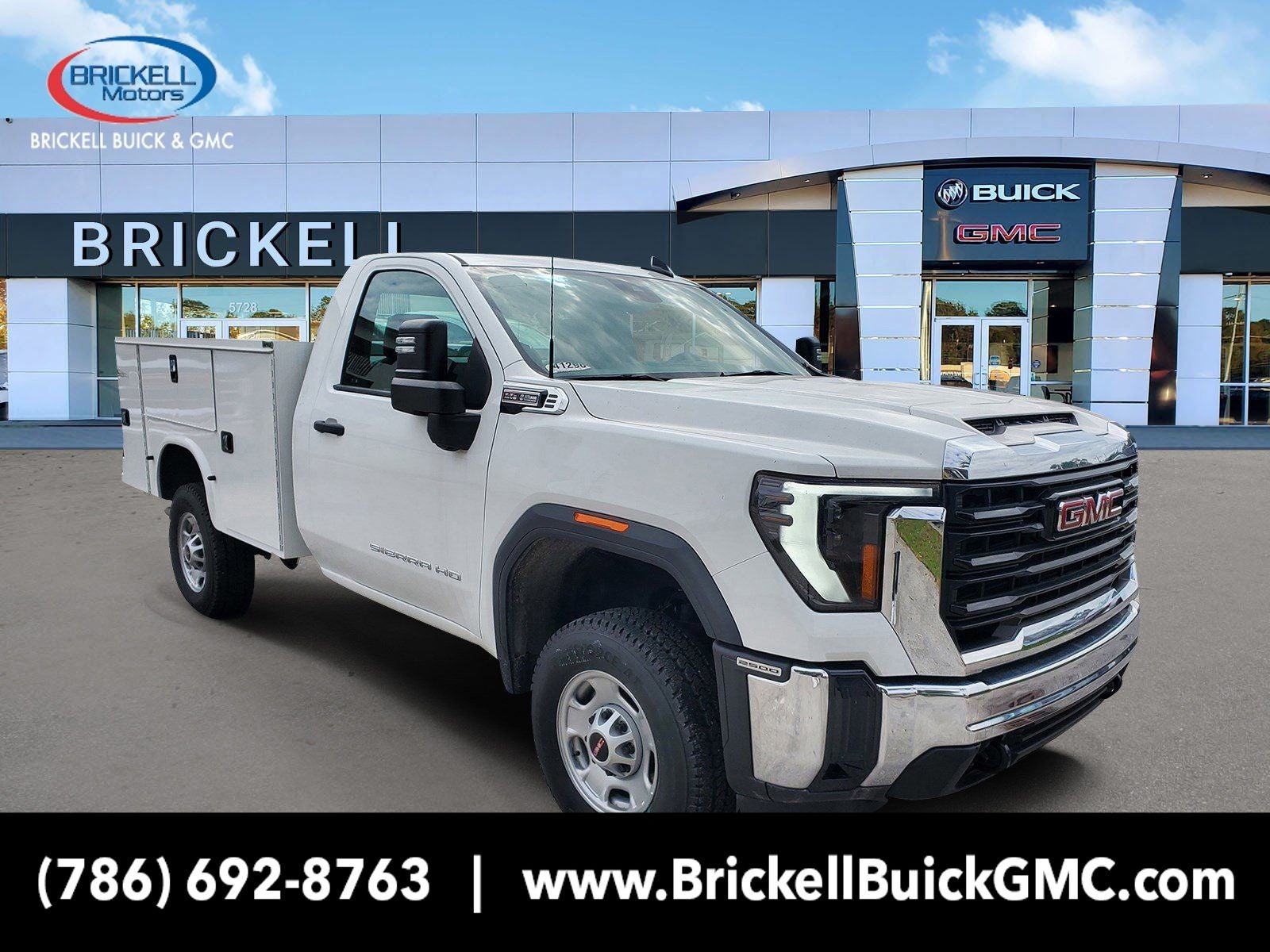

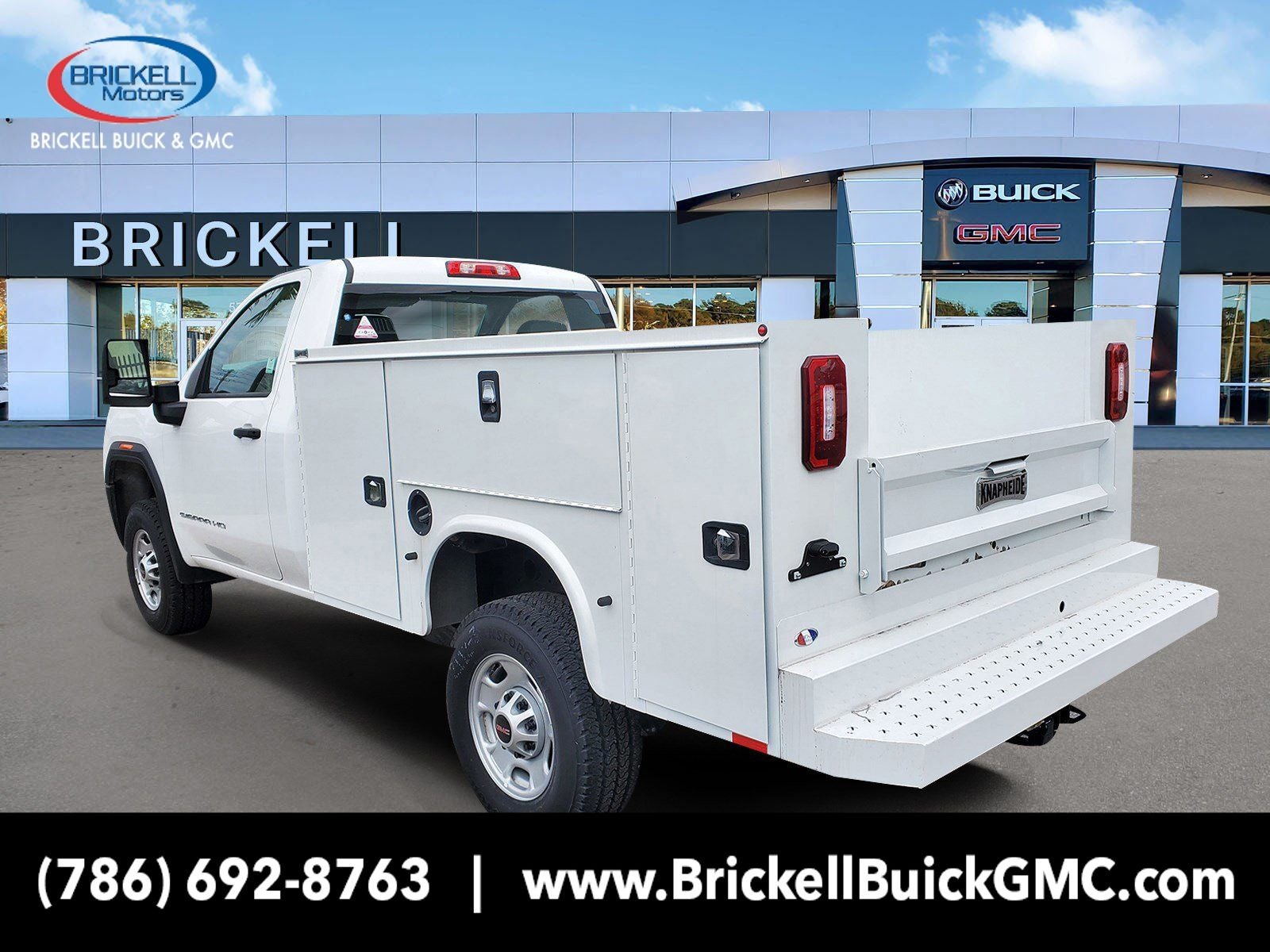

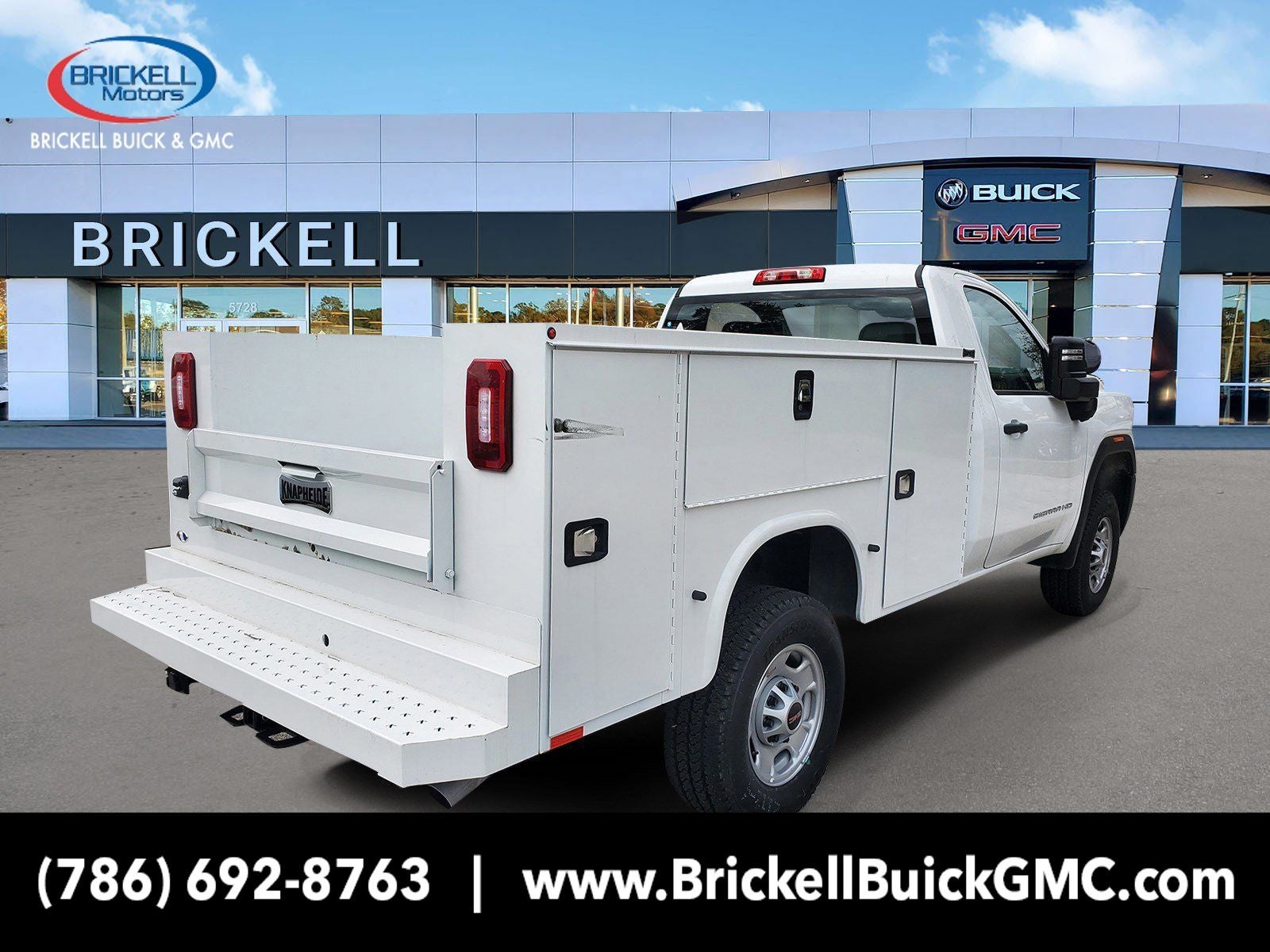

• Vehicle Name: GMC Sierra 2500HD
• Body Style: Regular Cab Chassis Cab
• Body Style: Regular Cab Pickup
• Body Code: ZW9
• Body Code: E63
